linux+nginx+tomcat负载均衡,实现session同步

作者：Admin   分类：Linux

201804-09
浏览: 3127    评论: 0

第一部分：nginx反向代理tomcat一、软件及环境软件系统角色用途安装的软件ip地址Centos6.5x86_64nginx反向代理用户请求nginx172.16.249.210Centos6.5x86_64tomcat1处理jsp请求jdk+t...


第一部分：nginx反向代理tomcat

一、软件及环境

软件

系统角色用途安装的软件ip地址
Centos6.5x86_64nginx反向代理用户请求nginx172.16.249.210
Centos6.5x86_64tomcat1处理jsp请求
jdk+tomcat172.16.249.101
Centos6.5x86_64tomcat2172.16.249.100
Centos6.5x86_64mog(ilefs/store)分布式存储静态数据mogilefs172.16.249.129
Centos6.5x86_64mog(ilefs/store)+mariadb172.16.249.128

拓扑图


二、实现过程

1、nginx安装

配置文件如下：


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
#user  nobody;
worker_processes  1;
#error_log  logs/error.log;
#error_log  logs/error.log  notice;
#error_log  logs/error.log  info;
#pid        logs/nginx.pid;
events {
    worker_connections  1024;
}
http {
    include       mime.types;
    default_type  application/octet-stream;
    #log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
    #                  '$status $body_bytes_sent "$http_referer" '
    #                  '"$http_user_agent" "$http_x_forwarded_for"';
    #access_log  logs/access.log  main;
    sendfile        on;
    #tcp_nopush     on;
    #keepalive_timeout  0;
    keepalive_timeout  65;
    #gzip  on;
upstream mogfs_cluster {
    server 172.16.249.128:7001;
    server 172.16.249.129:7001;

}
upstream jsp_server {
   server 172.16.249.100:8080;
   server 172.16.249.101:8080;
}
    server {
        listen       80;
       # server_name  localhost;
       # location / {
        #    root   html;
        #    index  index.html index.htm;
       # }

    location ~* ^(/images/.*)$ {
             mogilefs_tracker mogfs_cluster;
             mogilefs_domain images;
         mogilefs_noverify on;
         mogilefs_pass $1 {
        proxy_pass $mogilefs_path;
        proxy_hide_header Content-Type;
        proxy_buffering off;
}
}
    location ~* ^(/text/.*)$ {
             mogilefs_tracker mogfs_cluster;
             mogilefs_domain text;
             mogilefs_noverify on;
             mogilefs_pass $1 {
                proxy_pass $mogilefs_path;
                proxy_hide_header Content-Type;
                proxy_buffering off;
}
}
  location ~* (\.jsp|do)$ {
        proxy_pass http://jsp_server;

}
        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root   html;
        }
    }
}

2、安装JDK+Tomcat

tomcat1配置文件如下（server.xml）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
<?xml version='1.0' encoding='utf-8'?>
<!--
  Licensed to the Apache Software Foundation (ASF) under one or more
  contributor license agreements.  See the NOTICE file distributed with
  this work for additional information regarding copyright ownership.
  The ASF licenses this file to You under the Apache License, Version 2.0
  (the "License"); you may not use this file except in compliance with
  the License.  You may obtain a copy of the License at
      http://www.apache.org/licenses/LICENSE-2.0
  Unless required by applicable law or agreed to in writing, software
  distributed under the License is distributed on an "AS IS" BASIS,
  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  See the License for the specific language governing permissions and
  limitations under the License.
-->
<!-- Note:  A "Server" is not itself a "Container", so you may not
     define subcomponents such as "Valves" at this level.
     Documentation at /docs/config/server.html
 -->
<Server port="8005" shutdown="SHUTDOWN">
  <!-- Security listener. Documentation at /docs/config/listeners.html
  <Listener className="org.apache.catalina.security.SecurityListener" />
  -->
  <!--APR library loader. Documentation at /docs/apr.html -->
  <Listener className="org.apache.catalina.core.AprLifecycleListener" SSLEngine="on" />
  <!--Initialize Jasper prior to webapps are loaded. Documentation at /docs/jasper-howto.html -->
  <Listener className="org.apache.catalina.core.JasperListener" />
  <!-- Prevent memory leaks due to use of particular java/javax APIs-->
  <Listener className="org.apache.catalina.core.JreMemoryLeakPreventionListener" />
  <Listener className="org.apache.catalina.mbeans.GlobalResourcesLifecycleListener" />
  <Listener className="org.apache.catalina.core.ThreadLocalLeakPreventionListener" />
  <!-- Global JNDI resources
       Documentation at /docs/jndi-resources-howto.html
  -->
  <GlobalNamingResources>
    <!-- Editable user database that can also be used by
         UserDatabaseRealm to authenticate users
    -->
    <Resource name="UserDatabase" auth="Container"
              type="org.apache.catalina.UserDatabase"
              description="User database that can be updated and saved"
              factory="org.apache.catalina.users.MemoryUserDatabaseFactory"
              pathname="conf/tomcat-users.xml" />
  </GlobalNamingResources>
  <!-- A "Service" is a collection of one or more "Connectors" that share
       a single "Container" Note:  A "Service" is not itself a "Container",
       so you may not define subcomponents such as "Valves" at this level.
       Documentation at /docs/config/service.html
   -->
  <Service name="Catalina">
    <!--The connectors can use a shared executor, you can define one or more named thread pools-->
    <!--
    <Executor name="tomcatThreadPool" namePrefix="catalina-exec-"
        maxThreads="150" minSpareThreads="4"/>
    -->
    <!-- A "Connector" represents an endpoint by which requests are received
         and responses are returned. Documentation at :
         Java HTTP Connector: /docs/config/http.html (blocking & non-blocking)
         Java AJP  Connector: /docs/config/ajp.html
         APR (HTTP/AJP) Connector: /docs/apr.html
         Define a non-SSL HTTP/1.1 Connector on port 8080
    -->
    <Connector port="8080" protocol="HTTP/1.1"
               connectionTimeout="20000"
               redirectPort="8443" />
    <!-- A "Connector" using the shared thread pool-->
    <!--
    <Connector executor="tomcatThreadPool"
               port="8080" protocol="HTTP/1.1"
               connectionTimeout="20000"
               redirectPort="8443" />
    -->
    <!-- Define a SSL HTTP/1.1 Connector on port 8443
         This connector uses the JSSE configuration, when using APR, the
         connector should be using the OpenSSL style configuration
         described in the APR documentation -->
    <!--
    <Connector port="8443" protocol="HTTP/1.1" SSLEnabled="true"
               maxThreads="150" scheme="https" secure="true"
               clientAuth="false" sslProtocol="TLS" />
    -->
    <!-- Define an AJP 1.3 Connector on port 8009 -->
    <Connector port="8009" protocol="AJP/1.3" redirectPort="8443" />
    <!-- An Engine represents the entry point (within Catalina) that processes
         every request.  The Engine implementation for Tomcat stand alone
         analyzes the HTTP headers included with the request, and passes them
         on to the appropriate Host (virtual host).
         Documentation at /docs/config/engine.html -->
    <!-- You should set jvmRoute to support load-balancing via AJP ie :
    <Engine name="Catalina" defaultHost="localhost" jvmRoute="jvm1">
    -->
    <Engine name="Catalina" defaultHost="localhost">
      <!--For clustering, please take a look at documentation at:
          /docs/cluster-howto.html  (simple how to)
          /docs/config/cluster.html (reference documentation) -->
      <!--
      <Cluster className="org.apache.catalina.ha.tcp.SimpleTcpCluster"/>
      -->
      <!-- Use the LockOutRealm to prevent attempts to guess user passwords
           via a brute-force attack -->
      <Realm className="org.apache.catalina.realm.LockOutRealm">
        <!-- This Realm uses the UserDatabase configured in the global JNDI
             resources under the key "UserDatabase".  Any edits
             that are performed against this UserDatabase are immediately
             available for use by the Realm.  -->
        <Realm className="org.apache.catalina.realm.UserDatabaseRealm"
               resourceName="UserDatabase"/>
      </Realm>
      <Host name="www.essun.org" appBase="webapps"
            unpackWARs="true" autoDeploy="true">
            <Context path="" docBase="essun" />
            <Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"
                   prefix="essun_access_log." suffix=".txt"
                   pattern="%h %l %u %t &quot;%r&quot; %s %b" />
      </Host>
      <Host name="localhost"  appBase="webapps"
            unpackWARs="true" autoDeploy="true">
        <!-- SingleSignOn valve, share authentication between web applications
             Documentation at: /docs/config/valve.html -->
        <!--
        <Valve className="org.apache.catalina.authenticator.SingleSignOn" />
        -->
        <!-- Access log processes all example.
             Documentation at: /docs/config/valve.html
             Note: The pattern used is equivalent to using pattern="common" -->
        <Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"
               prefix="localhost_access_log." suffix=".txt"
               pattern="%h %l %u %t &quot;%r&quot; %s %b" />
      </Host>
    </Engine>
  </Service>
</Server>

站点目录文件如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
[root@essun tomcat]# cd webapps/essun/
[root@essun essun]# ls
index.jsp  WEB-INF
[root@essun essun]# ll WEB-INF/
total 8
drwxr-xr-x 2 root root 4096 May  2 11:07 classes
drwxr-xr-x 2 root root 4096 May  2 11:07 lib
[root@essun essun]# cat index.jsp
<%@  page language="java" %>
<html>
  <head><title>essun.node2</title></head>
  <body>    <h1><font color="red">essun.node2.org</font></h1>
    <table align="centre" border="1">
      <tr>
        <td>Session ID</td>
    <% session.setAttribute("essun.org","essun.org"); %>
        <td><%= session.getId() %></td>
      </tr>
      <tr>
        <td>Created on</td>
        <td><%= session.getCreationTime() %></td>
     </tr>
    </table>
<p>
<a href="http://172.16.249.210/images/4.jpg">"Picture"</a></p>
<% out.println("<img src='http://172.16.249.210/images/3.jpg'>"); %>
</body>
</html>

tomcat2 与此处的配置相同，仅 index.jsp有所不同

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
[root@essun essun]# cat index.jsp
<%@  page language="java" %>
<html>
  <head><title>essun.node1</title></head>
  <body>    <h1><font color="blue">essun.node1.org</font></h1>
    <table align="centre" border="1">
      <tr>
        <td>Session ID</td>
    <% session.setAttribute("essun.org","essun.org"); %>
        <td><%= session.getId() %></td>
      </tr>
      <tr>
        <td>Created on</td>
        <td><%= session.getCreationTime() %></td>
     </tr>
    </table>
 <p>
<a href="http://172.16.249.210/images/4.jpg">"picture"</a></p>
<% out.println("<img src='http://172.16.249.210/images/3.jpg'>"); %>
</body>
</html>

3、mogilefs安装

配置文件中只要修改对应的ip地址即可

4、测试

访问nginx

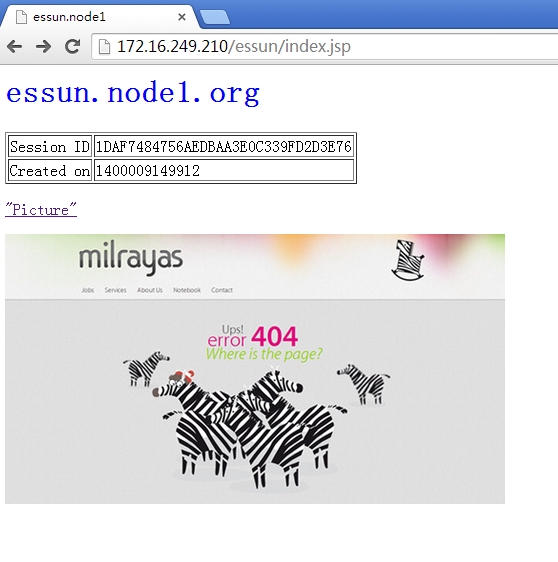

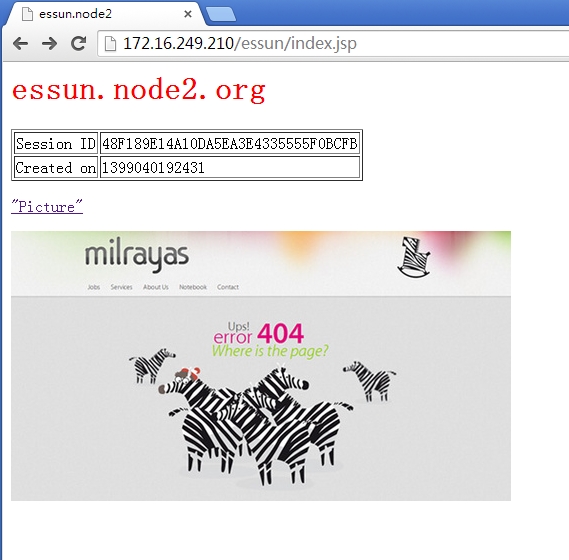

刷新后的结果


己经通过nginx中的proxy_pass为tomcat反向代理

注：

<a href="http://172.16.249.210/images/4.jpg">"picture"</a></p>
<% out.println("<img src='http://172.16.249.210/images/3.jpg'>"); %>

这两处的url都是nginx反向代理mogilefs的url.

第二部分、实现session会话同步（DeltaManager方式）

tomcat会话管理

会话分类

标准会话管理器和持久会话管理器

标准会话管理器(StandardManager)

1
2
<Manager className="org.apache.catalina.session.StandardManager"
                 maxInactiveInterval="7200"/>

默认保存于$CATALINA_HOME/work/Catalina/<hostname>/<webapp-name>/下的SESSIONS.ser文件中。

  • maxActiveSessions：最多允许的活动会话数量，默认为-1，表示不限制；

  • maxInactiveInterval：非活动的会话超时时长，默认为60s；

  • pathname：会话文件的保存目录；  持久会话管理器(PersistentManager)：将会话数据保存至持久存储中，并且能在服务器意外中止后重新启动时重新加载这些会话信息。持久会话管理器支持将会话保存至文件存储(FileStore)或JDBC存储(JDBCStore)中。

  • 保存至文件中的示例

1
2
3
4
5
<Manager className="org.apache.catalina.session.PersistentManager"
          saveOnRestart="true">
          <Store className="org.apache.catalina.session.FileStore"
            directory="/data/tomcat-sessions"/>
        </Manager>

每个用户的会话会被保存至directory指定的目录中的文件中，文件名为.session，并通过后台线程每隔一段时间(checkInterval参数定义，默认为60秒)检查一次超时会话。

  • 保存至JDBCStore中的示例


1
2
3
4
5
6
<Manager className="org.apache.catalina.session.PersistentManager"
          saveOnRestart="true">
          <Store className="org.apache.catalina.session.JDBCStore"
            driverName="com.mysql.jdbc.Driver"
            connectionURL="jdbc:mysql://localhost:3306/mydb?user=jb;password=pw"/>
        </Manager>


Manger对象用于实现HTTP会话管理的功能，Tomcat6中有4种Manger的实现：

  • StandardManagerTomcat7的默认会话管理器，用于非集群环境中对单个处于运行状态的Tomcat实例会话进行管理。当Tomcat关闭时，这些会话相关的数据会被写入磁盘上的一个名叫SESSION.ser的文件，并在Tomcat下次启动时读取此文件。

  • PersistentManager当一个会话长时间处于空闲状态时会被写入到swap会话对象，这对于内存资源比较吃紧的应用环境来说比较有用。

  • DeltaManager用于Tomcat集群的会话管理器，它通过将改变了的会话数据同步给集群中的其它节点实现会话复制。这种实现会将所有会话的改变同步给集群中的每一个节点，也是在集群环境中用得最多的一种实现方式。

  • BackupManager用于Tomcat集群的会话管理器，与DeltaManager不同的是，某节点会话的改变只会同步给集群中的另一个而非所有节点。

注 ：

负载均衡，且实现会话绑定要注意给每个tomcat实例的egine容器一个jvmRoute属性！此名称要跟前端调度模块使用名称保持一致！另外，在mod_proxy实现负载均衡的会话绑定时，还要使用sticksession=JSESSIONID（字符要大写）！

1、分别打开tomcat1和tomcat2下conf中server.xml

1
2
3
4
5
6
7
8
<Server port="8005" shutdown="SHUTDOWN">
<!-- Define a non-SSL HTTP/1.1 Connector on port 8080 --> <Connector port="8080" maxHttpHeaderSize="8192"
maxThreads="150" minSpareThreads="25" maxSpareThreads="75"
enableLookups="false" redirectPort="8443" acceptCount="100"
connectionTimeout="20000" disableUploadTimeout="true" />
<!-- Define an AJP 1.3 Connector on port 8009 -->
<Connector port="8009" enableLookups="false" redirectPort="8443"
protocol="AJP/1.3" />

找到<Engine name="Catalina" defaultHost="localhost">

Tomcat1下的修改为

1
<Engine name="Catalina" defaultHost="localhost" jvmRoute="tomcat1">

Tomcat2下的修改为<Engine name="Catalina" defaultHost="localhost" jvmRoute="tomcat2">

2、修改tomcat1中的Cluster className tomcat1找到 修改为

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
<!--
<Cluster className="org.apache.catalina.ha.tcp.SimpleTcpCluster"/>

-->
#在这以下为添加内容
 <Cluster className="org.apache.catalina.ha.tcp.SimpleTcpCluster"
                 channelSendOptions="8">
          <Manager className="org.apache.catalina.ha.session.DeltaManager"
                   expireSessionsOnShutdown="false"
                   notifyListenersOnReplication="true"/>
          <Channel className="org.apache.catalina.tribes.group.GroupChannel">
            <Membership className="org.apache.catalina.tribes.membership.McastService"
                        address="228.0.0.4"
                        port="45564"
                        frequency="500"
                        dropTime="3000"/>
            <Receiver className="org.apache.catalina.tribes.transport.nio.NioReceiver"
                      address="172.16.249.101"
                      port="4000"
                      autoBind="100"
                      selectorTimeout="5000"
                      maxThreads="6"/>
            <Sender className="org.apache.catalina.tribes.transport.ReplicationTransmitter">
              <Transport className="org.apache.catalina.tribes.transport.nio.PooledParallelSender"/>
            </Sender>
            <Interceptor className="org.apache.catalina.tribes.group.interceptors.TcpFailureDetector"/>
            <Interceptor className="org.apache.catalina.tribes.group.interceptors.MessageDispatch15Interceptor"/>
          </Channel>
          <Valve className="org.apache.catalina.ha.tcp.ReplicationValve"
                 filter=""/>
          <Valve className="org.apache.catalina.ha.session.JvmRouteBinderValve"/>
          <Deployer className="org.apache.catalina.ha.deploy.FarmWarDeployer"
                    tempDir="/tmp/war-temp/"
                    deployDir="/tmp/war-deploy/"
                    watchDir="/tmp/war-listen/"
                    watchEnabled="false"/>
          <ClusterListener className="org.apache.catalina.ha.session.JvmRouteSessionIDBinderListener"/>
          <ClusterListener className="org.apache.catalina.ha.session.ClusterSessionListener"/>
        </Cluster>

3、将conf/web.xml复制一份到发布的站点目录WEB-INF下，在</web-app>前面加入以下这句话<distributable/>

如我的站点目录为

1
2
3
4
5
6
[root@essun tomcat]# cd webapps/essun/
[root@essun essun]# ll WEB-INF/
total 168
drwxr-xr-x 2 root root   4096 May 14 04:40 classes
drwxr-xr-x 2 root root   4096 May 14 04:40 lib
-rw------- 1 root root 162921 May 14 04:40 web.xml

4、在各节点为使用组播地址添加组播路由，格式：

1
route add -net $MCAST_ADDRESS netmask 255.255.255.255 dev eth0

如我自己的地址为

1
route add -net 228.0.0.4 netmask 255.255.255.255 dev eth0

而在tomcat2上只有两处与tomcat1不同，其它操作都一样

jvmRoute="tomcat2"

address="172.16.249.101"

address最好是当前节点的主机地址

session同步到这里设置完毕。

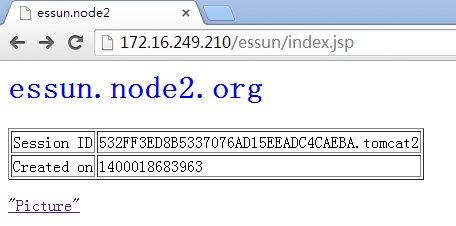

看一下效果

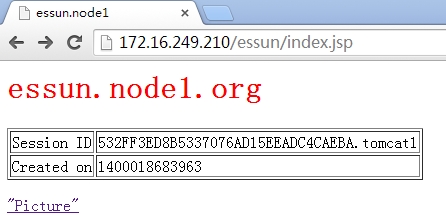

还有一张


服务器的启动顺序如下:

tomcat1 --> |tomcat2 --> |nginx

先启动tocmat1,等tomcat1启动完全的时候再启动tomcat2，等两个tocmat全启动之后，再启动nginx负载的时候可以用APACHE或NGINX，如果什么都不用，两台一接防问了话，可能会出错极session不同步的问题，网上也很多人介意不要做seeeion同步，这样会降低机器的性能，有一个方法可以，就是NGINX的ip_hash,这样至少可以保证客户端去防问同一台TOCMAT，除非那台TOCMAT挂了


全文详见：http://xpxw.com/?id=29

TOP


上一篇：Nginx反向代理，负载均衡+Tomcat实现Session共享
下一篇：深入浅出linux三剑客之awk必杀技
«    2024年10月    »
一 二 三 四 五 六 日
123456
78910111213
14151617181920
21222324252627
28293031
TOP 搜索
TOP 控制面板
您好，欢迎到访网站！
  查看权限
TOP 最新留言
    TOP 作者列表
    TOP 站点信息
    • 文章总数:163
    • 页面总数:0
    • 分类总数:6
    • 标签总数:20
    • 评论总数:0
    • 浏览总数:361552
